Harlow Engineering and FasTech Capability Summary
Below you will find a summary of our UK and US system, material and quality assurance capabilities. To discuss in further detail, please get in touch with the team.
|
GROB 350 |
YCM NXV1020A |
HAAS VF-2 SS |
HAAS UMC-1000SS |
HAAS ST-30Y |
HAAS CL-1 |
HAAS DM1 |
Gefertec ARC 405 3MP |
Gefertec ARC 605 3MP |
|
|
Direct import of customer models STP, IGES, PARASOLID, STL etc |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
|
EdgeCam |
✔ |
✔ |
|||||||
|
Autodesk Fusion 360 |
✔ |
✔ |
✔ |
✔ |
✔ |
||||
|
CGTech Vericut |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
||
|
Cam 3DMP |
✔ |
✔ |
|||||||
|
Material Capabilities |
|||||||||
|
Stainless Steels* |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
|
Aluminums* |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
|
Coppers* |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
|
Mild Steels* |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
|
Tool steels* |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
|
Inconel's* |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
|
Titanium's* |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
|
Nickel Aluminum Bronze* |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
|
Plastics* |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
||
|
Steels** |
✔ |
✔ |
|||||||
|
Ni Based** |
✔ |
✔ |
|||||||
|
Non-Ferrous** |
✔ |
✔ |
|||||||
* A full list of material grades we can machine can be provided on request. ** A full list of material grades we can print can be provided on request.
Quality Assurance Capabilities
|
Aberlink Axiom Too |
CRYSTA-Apex S9106 |
Visual Inspection |
Positive Material Inspection |
Magnetic Particle Inspection |
Dye Penetrant Inspection |
Ultrasonic Testing |
Tomography Inspection |
Radiographic Inspection |
|
|
UK CMM Inhouse Capabilities |
✔ |
||||||||
|
USA CMM Inhouse Capabilities |
✔ |
||||||||
|
UK NDT Capabilities (Subcontracted to Oceaneering Inspection) |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
|||
|
UK NDT Capabilities (Subcontracted to Acuren Inspection) |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
✔ |
 |
|
|
System |
GROB 350 Full 5 Axis Simultaneous |
|
Maximum Capacity (M3) |
0.2100M3 600mm x 600mm x 580mm |
|
Maximum RPM |
16,000 |
|
Control |
Heidenhain iTNC 530 |
|
Maximum Table Weight |
400Kg |
|
Axis Travels |
X 600mm Y 855mm Z 805mm |
|
Full Probe System |
Heidenhain & BLUM |
|
Number of Systems |
1 |
|
Location |
Harlow, United Kingdom |
 |
|
|
System |
YCM NXV1020A |
|
Maximum Capacity (M3) |
0.1421 M3 990mm x 495mm x 290mm |
|
Maximum RPM |
12,000 |
|
Control |
Heidenhain TNC 620 |
|
Maximum Table Weight |
500Kg |
|
Axis Travels |
X 1020mm Y 520mm Z 540mm |
|
Full Probe System |
Heidenhain |
|
Number of Systems |
2 |
|
Location |
Harlow, United Kingdom |
 |
|
|

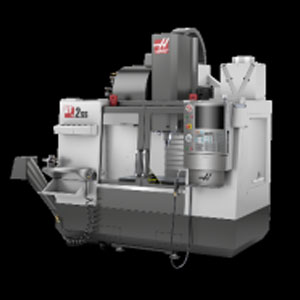

System |
HAAS VF-2SS |
|
Maximum Capacity (M3) |
0.0724 M3 737mm x 381mm x 258mm |
|
Maximum RPM |
12,000 |
|
Control |
Haas Next Generation Control |
|
Maximum Table Weight |
680kg |
|
Axis Travels |
X 762mm Y 406mm Z 508mm |
|
Full Probe System |
Renishaw |
|
Number of Systems |
2* |
|
Location |
Danville, VA USA |
*One system on loan from DCC and available for use.
 |
|
|
System |
HAAS UMC 1000SS |
|
Maximum Capacity (M3) |
0.2301 M3 990mm x 609mm x 381mm |
|
Maximum RPM |
12,000 |
|
Control |
Haas Next Generation Control |
|
Maximum Table Weight |
454kg |
|
Axis Travels |
X 1016mm Y 635mm Z 635mm |
|
Full Probe System |
Renishaw |
|
Number of Systems |
1 |
|
Location |
Danville, VA USA |
 |
|
|

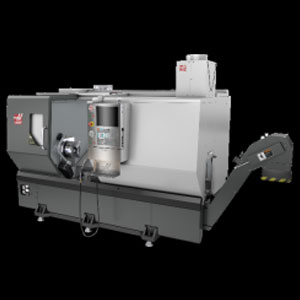

System |
HAAS ST-30Y |
|
Maximum Capacity |
76.2mm Dia x 1219.2 mm Bar |
|
Maximum RPM |
3,400 |
|
Control |
Haas Next Generation Control |
|
Maximum Table Weight |
N/A |
|
Axis Travels |
X 318mm Y +/-51mm Z 584mm |
|
Full Probe System |
Renishaw |
|
Number of Systems |
1 |
|
Location |
Danville, VA USA |
 |
|
|

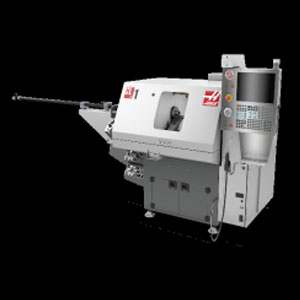

System |
HAAS CL-1 |
|
Maximum Capacity |
25.4mm Dia x 1828.8mm Bar |
|
Maximum RPM |
6,000 |
|
Control |
Haas Next Generation Control |
|
Maximum Table Weight |
N/A |
|
Axis Travels |
X 305mm Z 203mm |
|
Full Probe System |
N/A |
|
Number of Systems |
1 |
|
Location |
Danville, VA USA |
 |
|
|

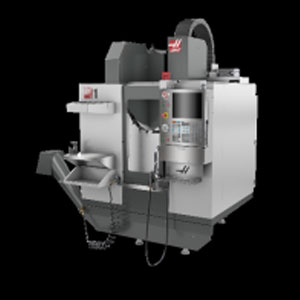

System |
HAAS DM1 |
|
Maximum Capacity (M3) |
0.0264 M3 483mm x 381mm x 144mm |
|
Maximum RPM |
10,000 |
|
Control |
Haas Next Generation Control |
|
Maximum Table Weight |
113 kg |
|
Axis Travels |
X 508mm Y 406mm Z 394mm |
|
Full Probe System |
Renishaw |
|
Number of Systems |
1* |
|
Location |
Danville, VA USA |
* system on loan from DCC and available for use.
 |
|
|

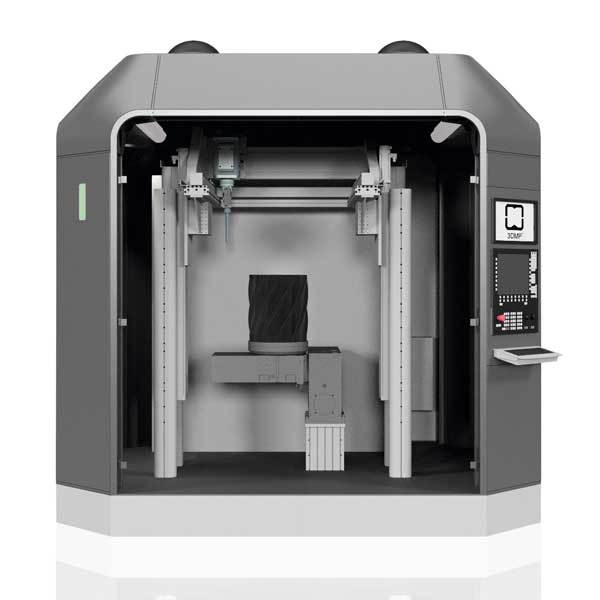

System |
Gefertec ARC 405 |
|
Maximum Capacity (M3) |
0.080 M3 400mm x 400mm x 500mm |
|
Maximum RPM |
N/A |
|
Control |
Siemens |
|
Maximum Table Weight |
200KG |
|
Axis Travels |
X 800mm Y 900mm Z 1000mm |
|
Full Probe System |
N/A |
|
Number of Systems |
1 |
|
Location |
Danville, VA USA |
 |
|
|
System |
Gefertec ARC 605 |
|
Maximum Capacity (M3) |
0.567 M3 900mm x 900mm x 700mm |
|
Maximum RPM |
N/A |
|
Control |
Siemens |
|
Maximum Table Weight |
420KG |
|
Axis Travels |
X 1100mm Y 1400mm Z 1720mm |
|
Full Probe System |
N/A |
|
Number of Systems |
1 |
|
Location |
Danville, VA USA |
